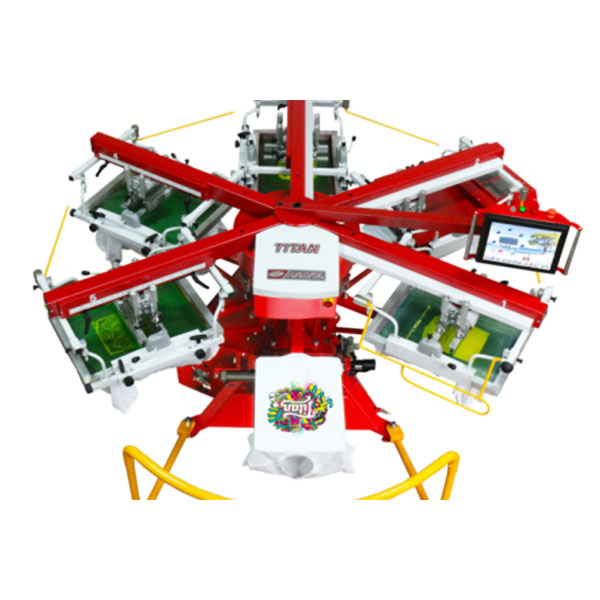

EACH - ANATOL TITAN PRESS ANATOL TITAN

Features:

  • Maximum print area of 15" x 16" (38cm x 41cm)
  • Maximum screen size of 21" x 28" (53cm x 71cm)
  • Available in configurations of: 6 stations/2 colors - 12 stations/11 colors
  • AAA Model has Air Lift/Air Indexer/Air Print Heads
  • ASA Model has Air Lift/Servo Indexer/Air Print Heads
  • ASE Model has Air Lift/Servo Indexer/Electric Print Heads

Price: $ Call for Price


Product Overview


CALL FOR PRICING

All Titan S Series presses have a maximum print area of 15" x 16", a maximum screen size of 21" x 28" and come with 16" x 22" palettes standard. The touchscreen is supported by a boom on all Series S models. All can be ordered except AAA models can be ordered with either 1 ph 208/230v, 50/60 Hz. or 3 ph 208/230v, 50/60 Hz.

AAA
ASA
ASE
Stations/Colors
Air @ 90 PSI
Power
Press Diameter
Air @ 90 PSI
Power
Press Diameter
Air @ 90 PSI
Power
Press Diameter
06/02 6.5 SCFM 1ph 115 VAC 2A 8' 9" 4.7 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 8' 9" 6.5 SCFM 1ph 208 VAC 7A
3ph 208 VAC 5A		 9' 4"
06/03 8.1 SCFM 1ph 115 VAC 2A 8' 9" 6.3 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 8' 9" 1.9 SCFM 1ph 208 VAC 7A
3ph 208 VAC 5A		 9' 4"
06/04 9.7 SCFM 1ph 115 VAC 2A 8' 9" 7.9 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 8' 9" 2.0 SCFM 1ph 208 VAC 10A
3ph 208 VAC 6A		 9' 4"
06/05 11.3 SCFM 1ph 115 VAC 2A 8' 9" 9.5 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 8' 9" 2.2 SCFM 1ph 208 VAC 11A
3ph 208 VAC 6A		 9' 4"
08/06 12.9 SCFM 1ph 115 VAC 2A 9' 11" 11.1 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 9' 11" 2.4 SCFM 1ph 208 VAC 11A
3ph 208 VAC 7A		 10' 1"
08/07 14.5 SCFM 1ph 115 VAC 2A 9' 11" 12.7 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 9' 11" 2.5 SCFM 1ph 208 VAC 12A
3ph 208 VAC 7A		 10' 1"
10/08 N/A N/A N/A 14.3 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 11' 1" 2.7 SCFM 1ph 208 VAC 14A
3ph 208 VAC 9A		 11' 3"
10/09 N/A N/A N/A 15.9 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 11' 1" 2.8 SCFM 1ph 208 VAC 14A
3ph 208 VAC 9A		 11' 3"
12/10 N/A N/A N/A 17.5 SCFM 1ph 208 VAC 6A
3ph 208 VAC 4A		 12' 3" 3.0 SCFM 1ph 208 VAC 16A
3ph 208 VAC 11A		 12' 3"
12/11 N/A N/A N/A 19.1 SCFM 1ph 208 VAC 6A 3ph 208 VAC 4A 12' 3" 3.1 SCFM 1ph 208 VAC 16A 3ph 208 VAC 11A 12' 3"

EACH - ANATOL TITAN PRESS ANATOL TITAN

Item ID: ANATOL TITAN

Manufacturer: EACH - ANATOL TITAN PRESS

Model No:

  • Maximum print area of 15" x 16" (38cm x 41cm)
  • Maximum screen size of 21" x 28" (53cm x 71cm)
  • Available in configurations of: 6 stations/2 colors - 12 stations/11 colors
  • AAA Model has Air Lift/Air Indexer/Air Print Heads
  • ASA Model has Air Lift/Servo Indexer/Air Print Heads
  • ASE Model has Air Lift/Servo Indexer/Electric Print Heads
