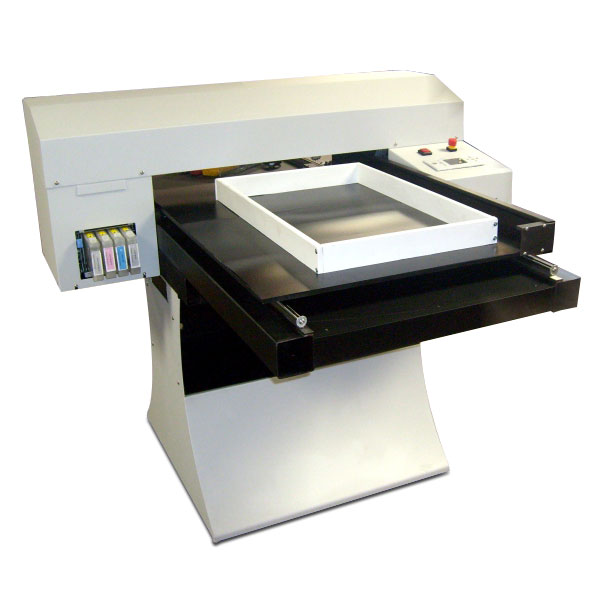

EACH - NEO SYSTEMS PHOENIX 25X36" DTS SYS E PH 2536

Features:

  • Faster Screen Making - reduced steps in production
  • Improved Resolution - print from 25 to 150 lpi with confidence that even the finest detail will be reproduced
  • No Film or Chemistry - eliminate the expense; no hassling with waste hauling chemistry
  • Prep Labor is Reduced - piecing films together becomes part of the past
  • No Film, No Glass - cut exposure time by 40%
  • Fewer Pinholes - less time spent blocking and waiting for the block out to dry; fewer re-makes because a pinhole is inthe wrong place
  • Faster Setup - a typical multi-color job will be up and in register 25 - 50% faster

Price: $ Call for Price



Product Overview


25X36" Maximum Frame
18x28" Live Image Area
Ergonomic Load and Unload

Physical Specifications

PHOENIX
XL
Max. Image
18" x 28"
46cm x 71cm
28" x 38"
71cm x 97cm
Max. Screen
25" x 36"
63cm x 91cm
36" x 48"
100cm x 120cm
Footprint (W,H,D)
53", 42", 72"
134cm, 110cm, 183cm
74", 42", 96"
187cm, 110cm, 243cm
Weight
300lbs
130kg
500lbs
227kg

Performance

Imaging Technology
Micro-Piezo
Ink Supply
Continuous Ink System
Repeatability
.002"
Interface
Ethernet
Throughput
Up to 55LPI
65 to 130LPI

12" x 18" - 2.5 minutes
12" x 18" - 4.8 minutes

Environmental

Voltage
Optional
115vac @ 50-60 Hz
230vac @ 50-60 Hz
Operating Temperature
70 - 90 degrees F
22 - 32 degrees C
Humidity
10 - 95% non-condensing

EACH - NEO SYSTEMS PHOENIX 25X36" DTS SYS E PH 2536

Item ID: E PH 2536

Manufacturer: EACH - NEO SYSTEMS PHOENIX 25X36" DTS SYS

Model No:

  • Faster Screen Making - reduced steps in production
  • Improved Resolution - print from 25 to 150 lpi with confidence that even the finest detail will be reproduced
  • No Film or Chemistry - eliminate the expense; no hassling with waste hauling chemistry
  • Prep Labor is Reduced - piecing films together becomes part of the past
  • No Film, No Glass - cut exposure time by 40%
  • Fewer Pinholes - less time spent blocking and waiting for the block out to dry; fewer re-makes because a pinhole is inthe wrong place
  • Faster Setup - a typical multi-color job will be up and in register 25 - 50% faster
