Vastex LittleRed X2
Features:
- 15 Year Warranty on Heaters.
- 2 - 7 in. belt-to-heater clearance, adjustable separately on each side for each heater.
- Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing.
- Powered exhaust system cools the outer cabinet while evacuating moisture and fumes.
- Digital PID temperature controller accurate to ±1°F.
- Low friction belt aligner and DC belt speed control with digital display.
- "X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt.
Description:
Mid- to high-capacity dryers with 30 or 54 in. wide belts. 120V/2,000 watt single-heater models up to 240V/15,600 watt three-heater models offer capacities from 90 to 720 plastisol-printed garments/h and 45 to 240/h screen printed with water-based ink. capacities go to Little Red X1 models.
The Little Red X2-30 model with 30 in. wide x 84 in. long conveyor belt is offered with two 24 in.wide 240V/2,600 watt heaters to cure up to 260 plastisol-printed images or 90 discharge or water-based printed images per hour.

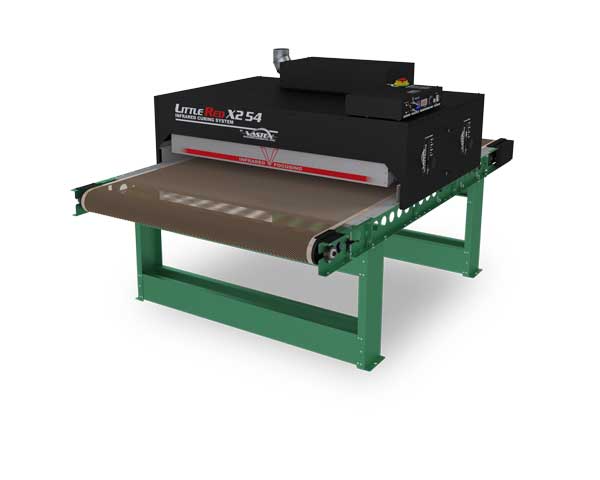

The Little Red X2-54 model with 54 in. wide x 84 in. long conveyor is equipped with two 48 in. wide 240V/5,200 watt infrared heaters to cure up to 520 plastisol-printed images or dry 180 discharge or water-based printed images per hour.
Capacity of both models can be expanded as needs grow by adding modular heating chamber(s) and longer conveyor belts.
